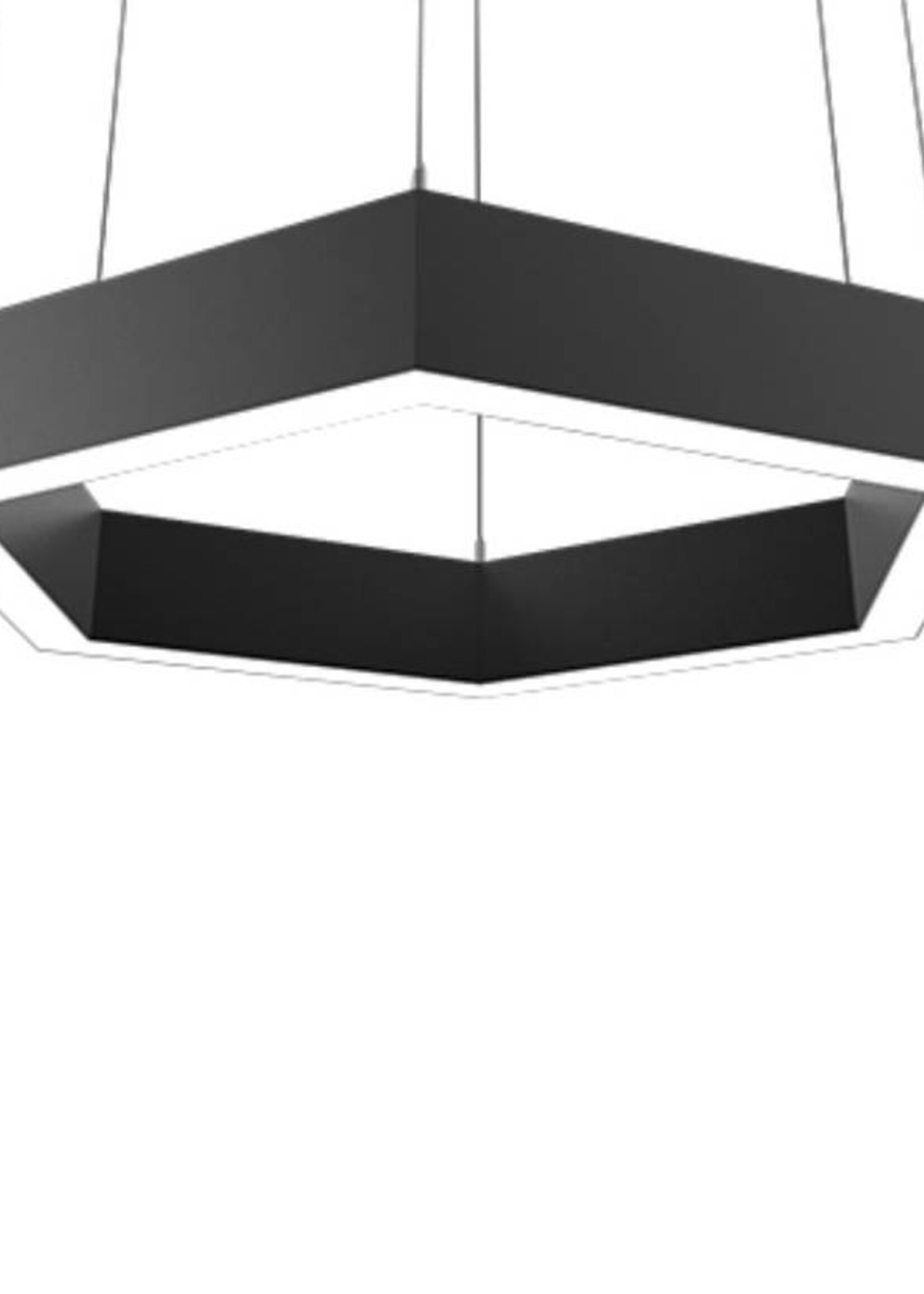

The Vector Hex is a 2 7/16” wide ambient linear architectural luminaire. Featuring a slim profile and robust construction, it provides a bold, design-driven lighting solution for modern offices, themed public areas, laboratories, libraries, and other indoor spaces. The Hex is available in standard widths of 4’, 5’, and 7’ (measured edge to edge) with a range of lumen packages and color temperatures available, including 5-Channel Color Tuning.

PERFORMANCE

• Selected by IES for the 2017 Progress Report
• Up to 1200 lm/ft direct, 1,400 lm/ft indirect at 4000K
• Independently-adjustable direct and indirect lumen outputs
• CRI: 95 min with R9 of 69 or better
• CCT: 2700K, 3000K, 3500K, 4000K, 5-Channel Color Tuning
• Projected Lifetime: 240,000 Hours (L80); 110,000 Hours (L90)
• Operating Temperature: -30°C to +55°C (-22°F to +131°F)
• Optional Dual Circuit for independent Up/Down control

Specification
