Spec Sheet

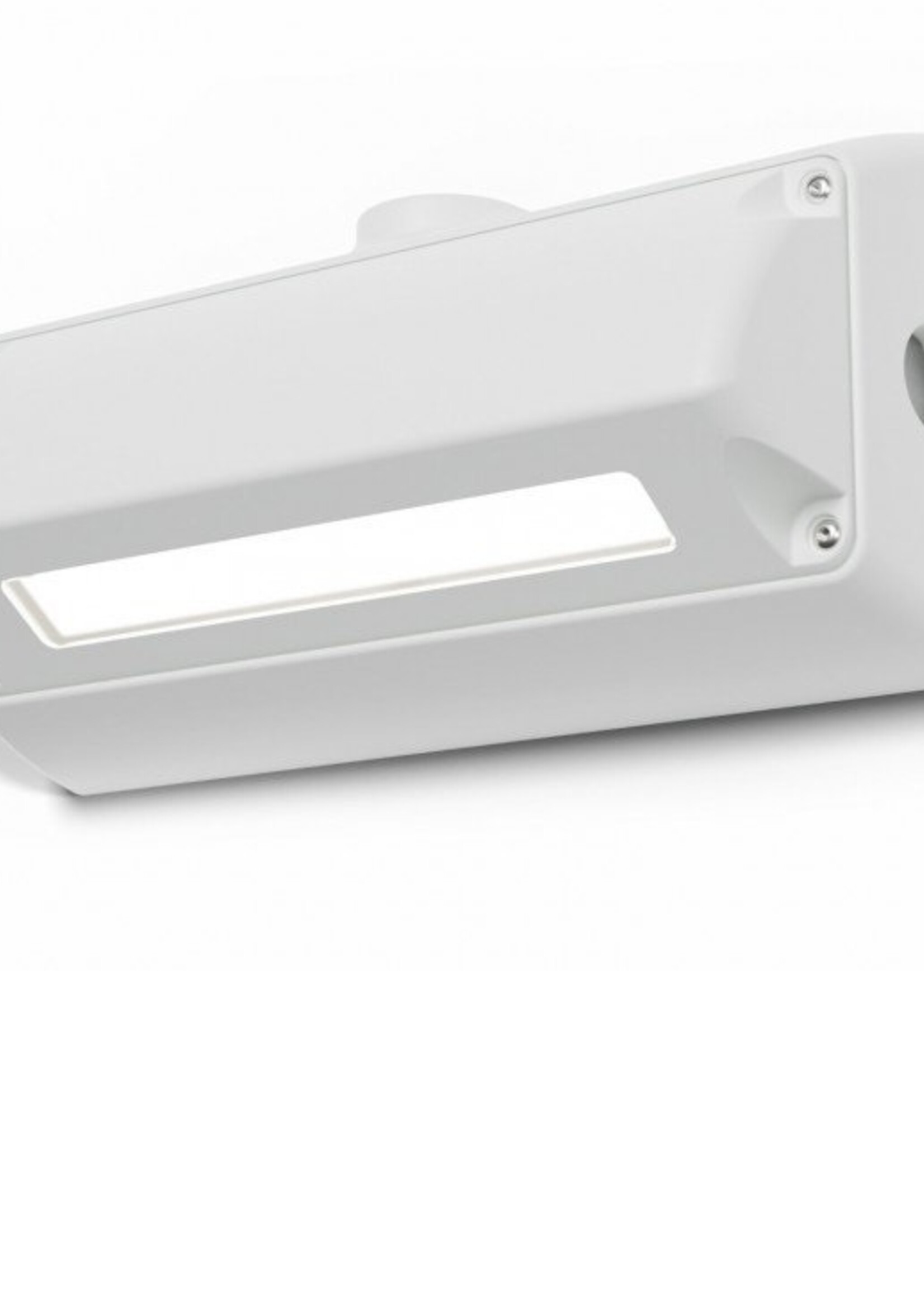

Our Guardian™ high security wall light was designed for environments which may be witness to abuse or tampering. This fully machined ligature resistant wall mounted reading light boasts many features such as internal locking conduit feeds and a vandal resistant push button switch to name a few.

FEATURES
• Damp location listed
• 0.78" [20mm] x 6" [152mm] Aperture
• Ligature resistant design
• Flush lens design with outer 0.236" [6mm] thick clear
tempered glass and inner 0.118" [3mm] thick frosted
polycarbonate lens
• Recessed vandal resistant push button switch
• Mounting base consists of single piece aluminum
construction suitable for mounting in upward or
downward position
• Face plate consists of single piece aluminum
construction, mounts to mounting base with pop rivets
(4 x 1/8 pop rivets included)
• Quick connect between mounting base and face plate
for easy installation and servicing
• Easily mounts onto 4" octogon junction box
• 3W linear LED module, field replaceable
• Integral non-dimmable driver
• Ø 0.875" mounting base hole for wiring over 4" j-box
FEATURES (WL1 CONDUIT FEED ONLY)
• 1/2"–14 NPT threaded hub for rigid conduit feed comes
with plug and pin removable from the inside
• Pilot marks for field drilling EMT conduit feed, comes
with 1/4–20 set screw for locking conduit in place
