Specification Sheet:  Matrix Large Bro
Specification Sheet:  Trimless Matrix Large Bro
Specification Sheet:  Matrix Small HAL
Specification Sheet:  Trimless Matrix Small

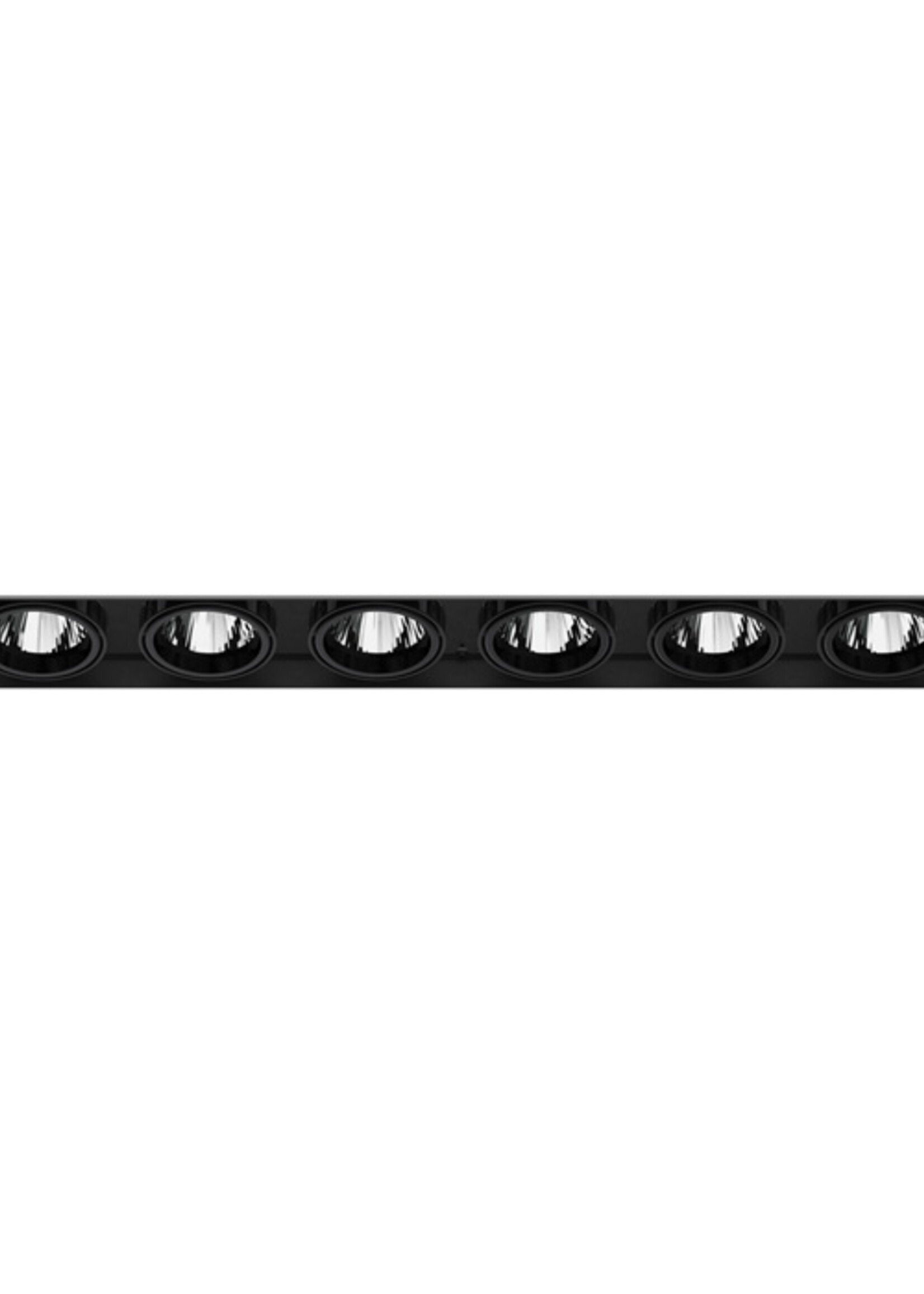

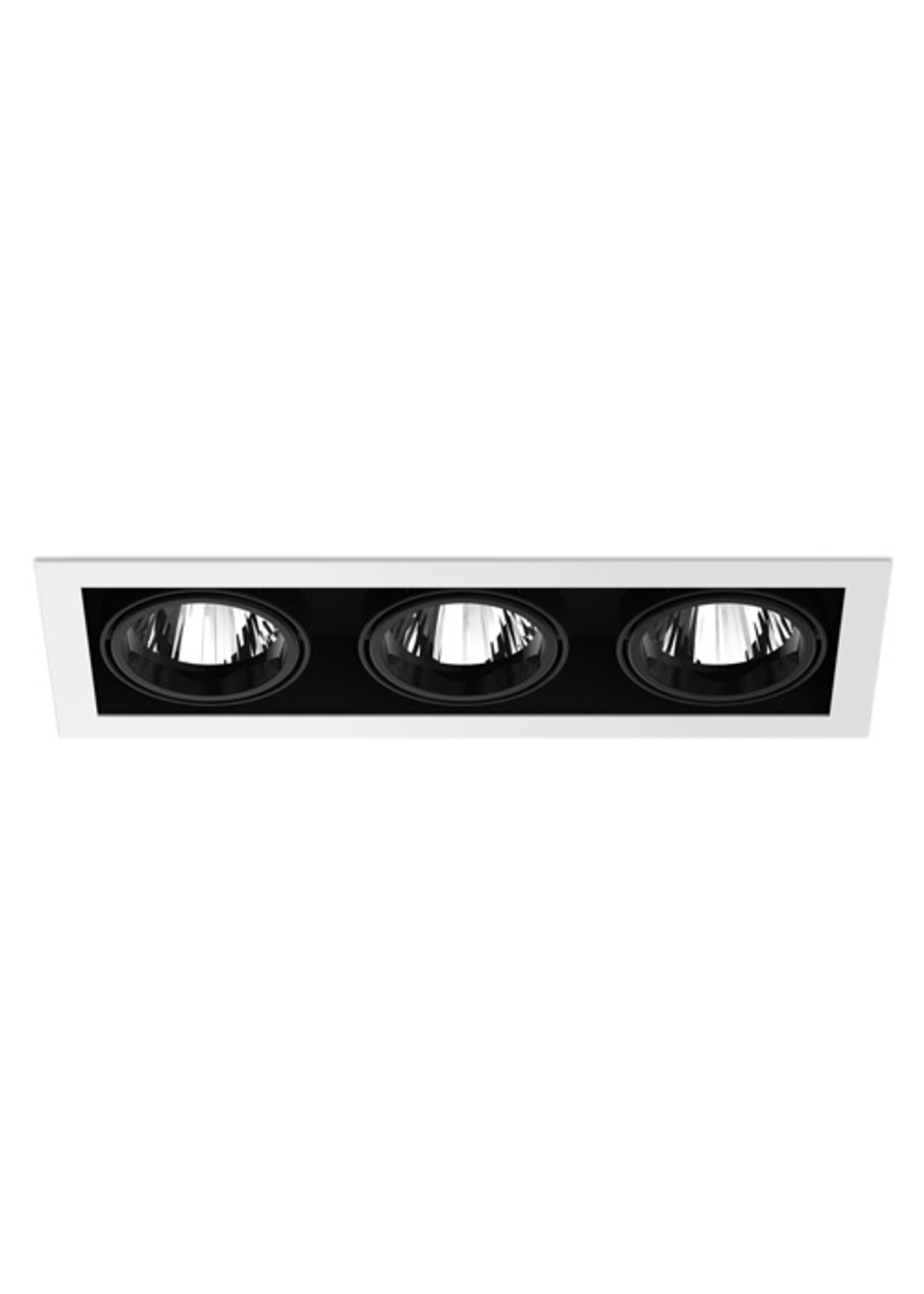

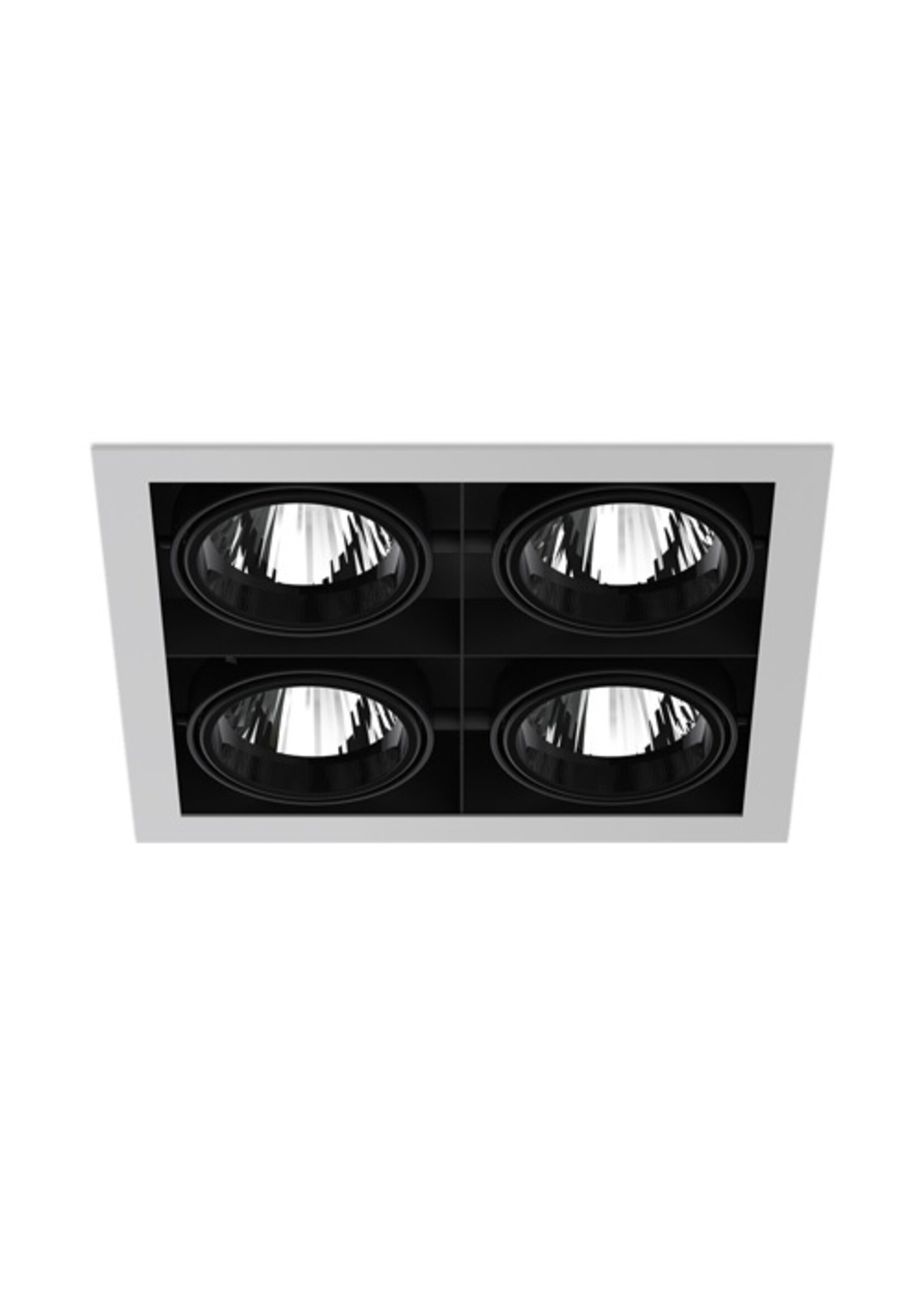

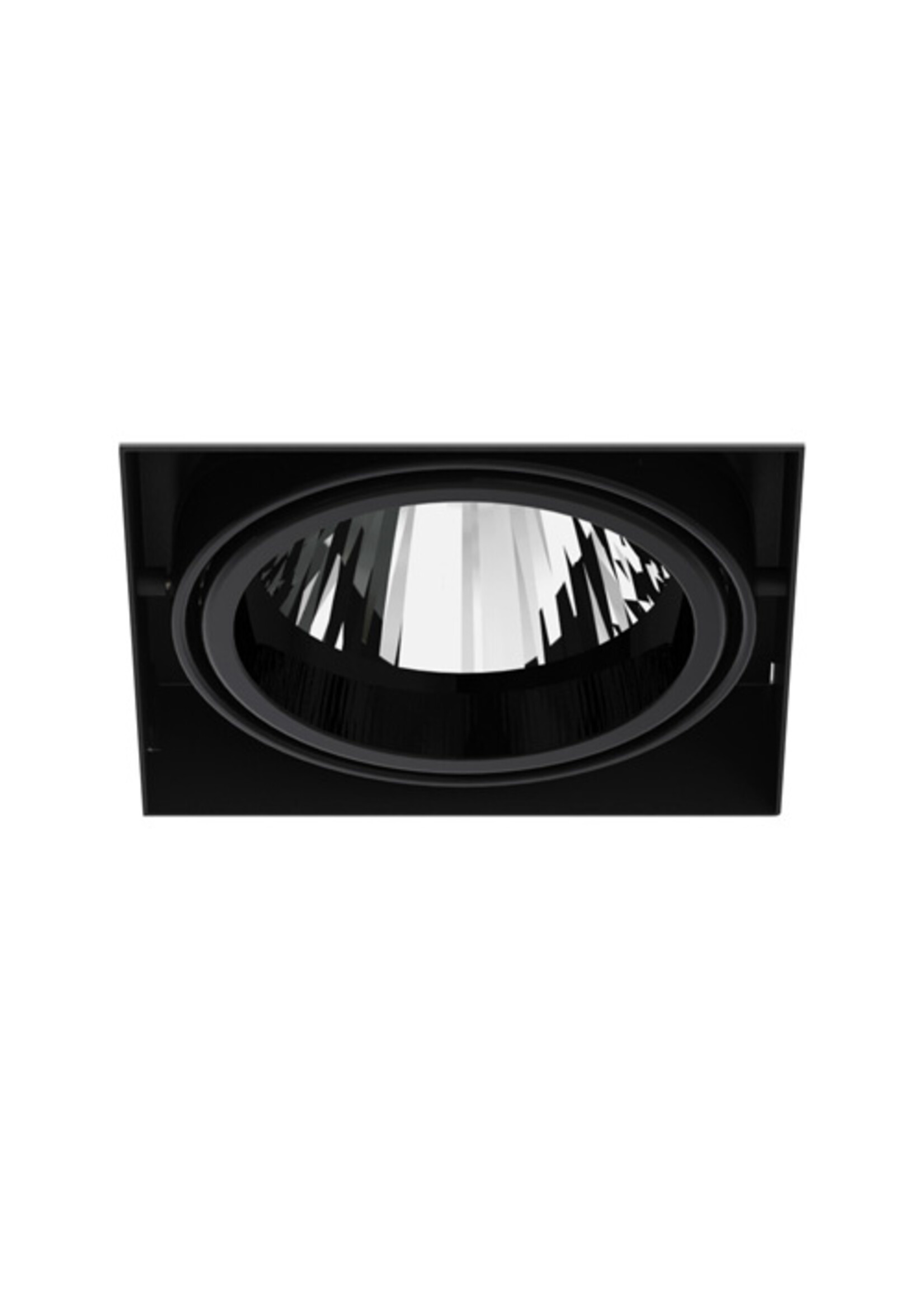

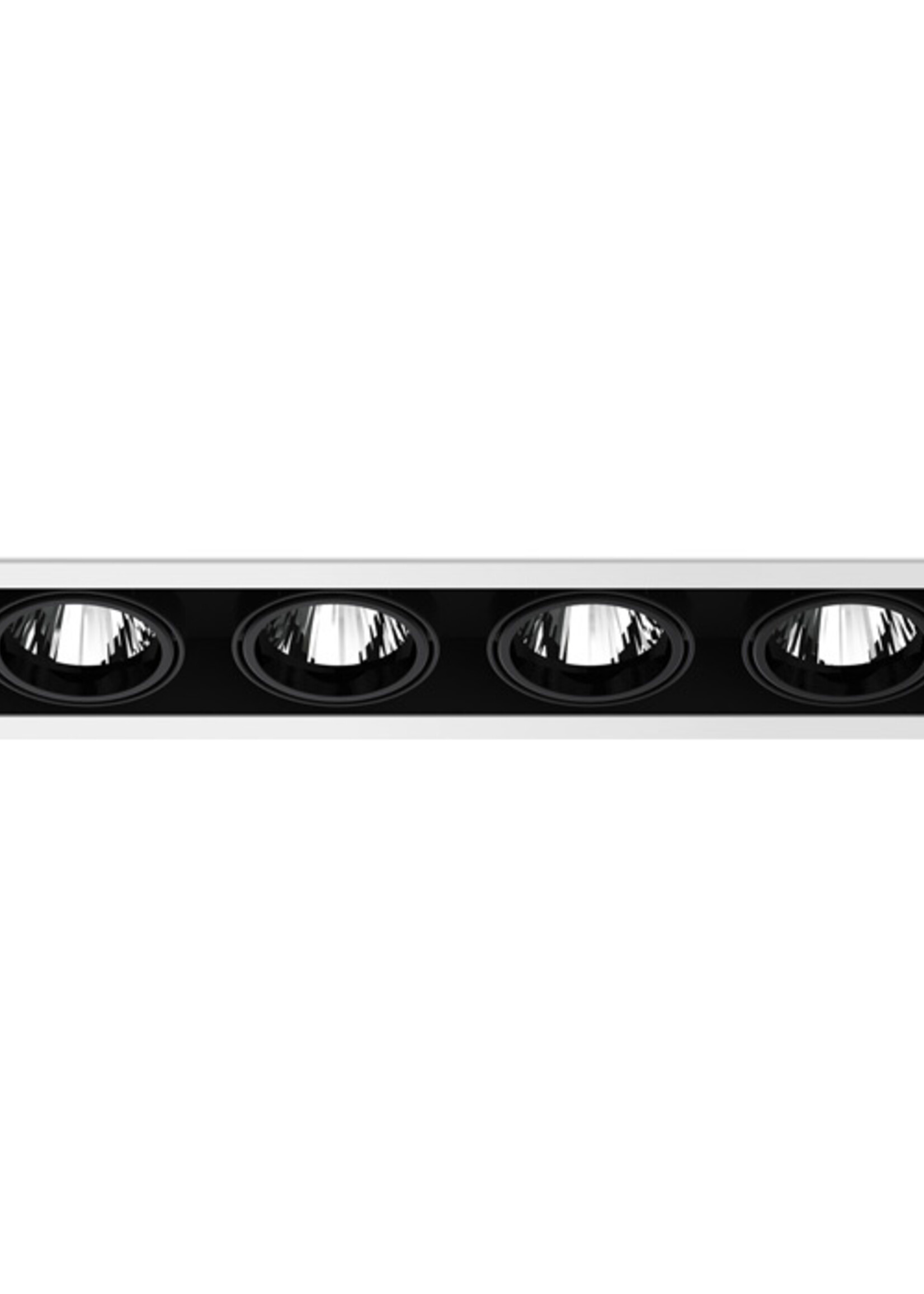

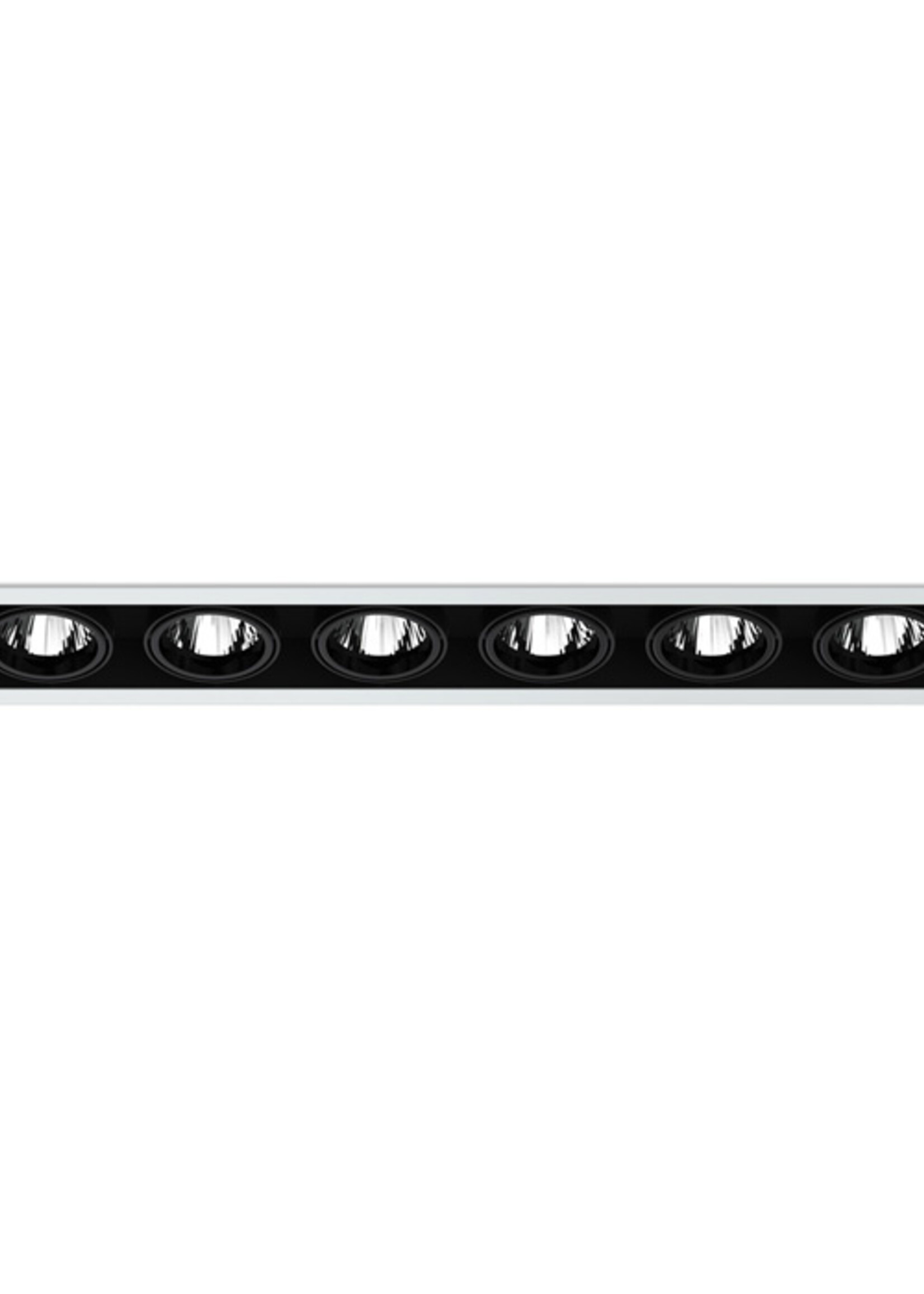

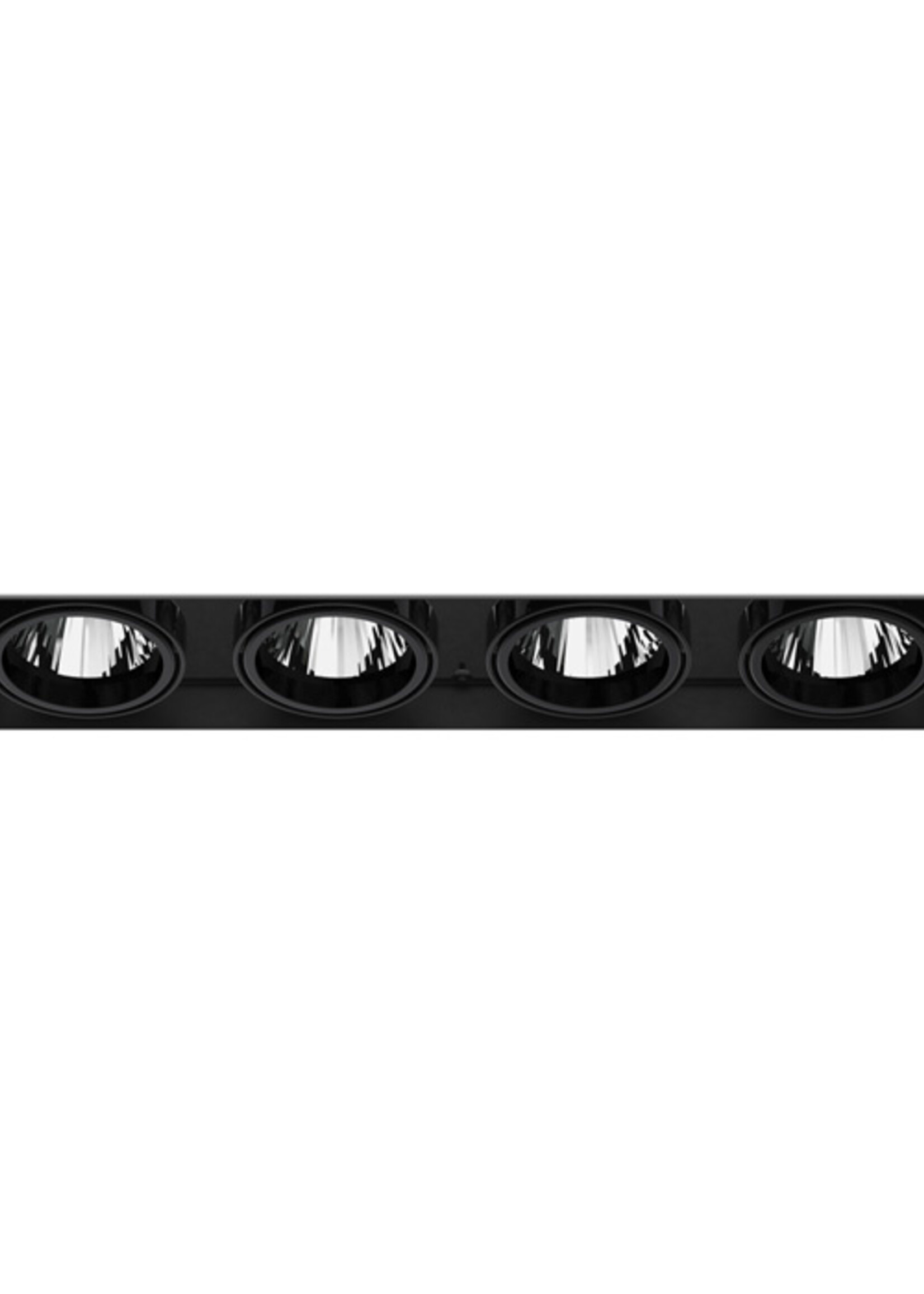

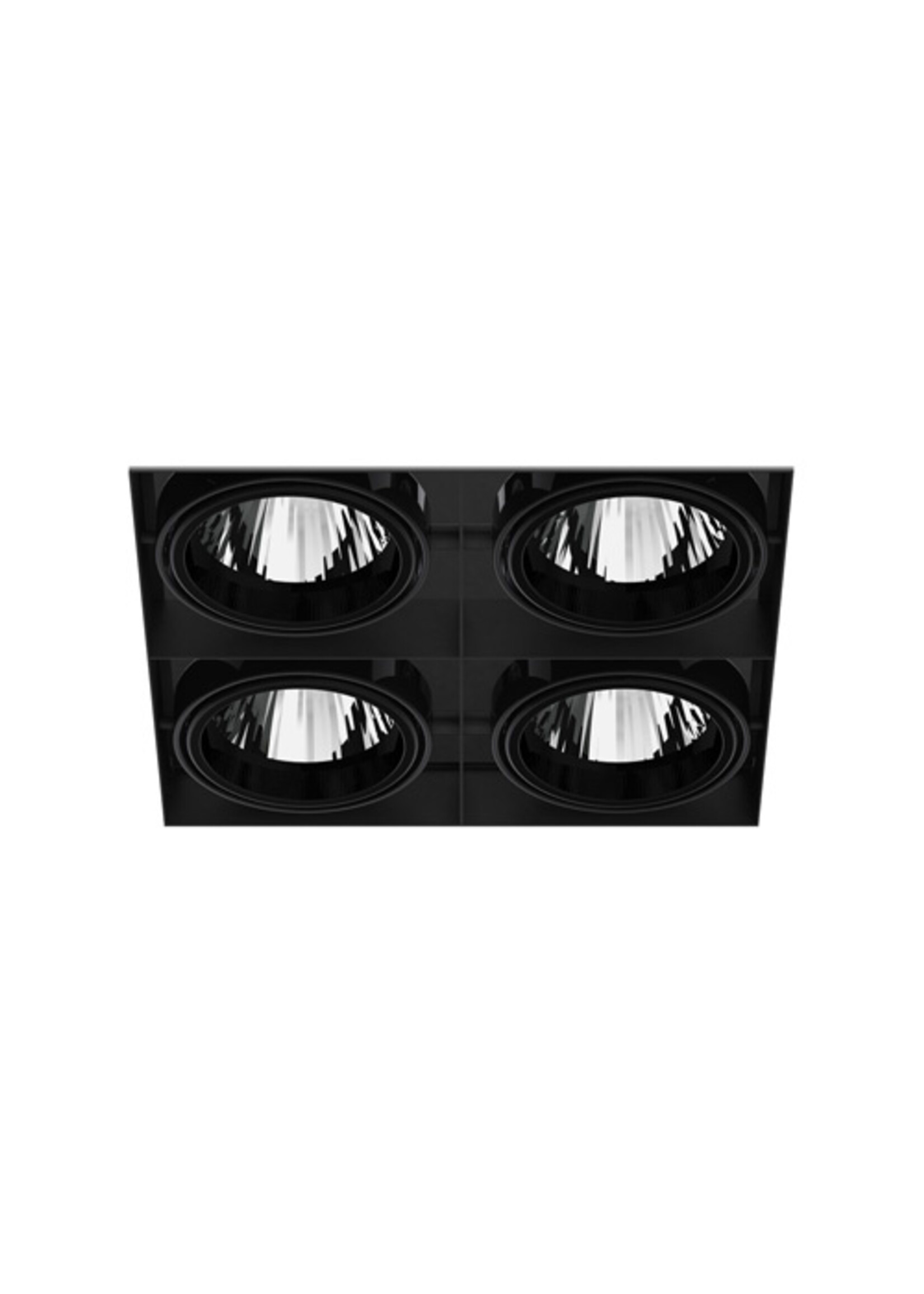

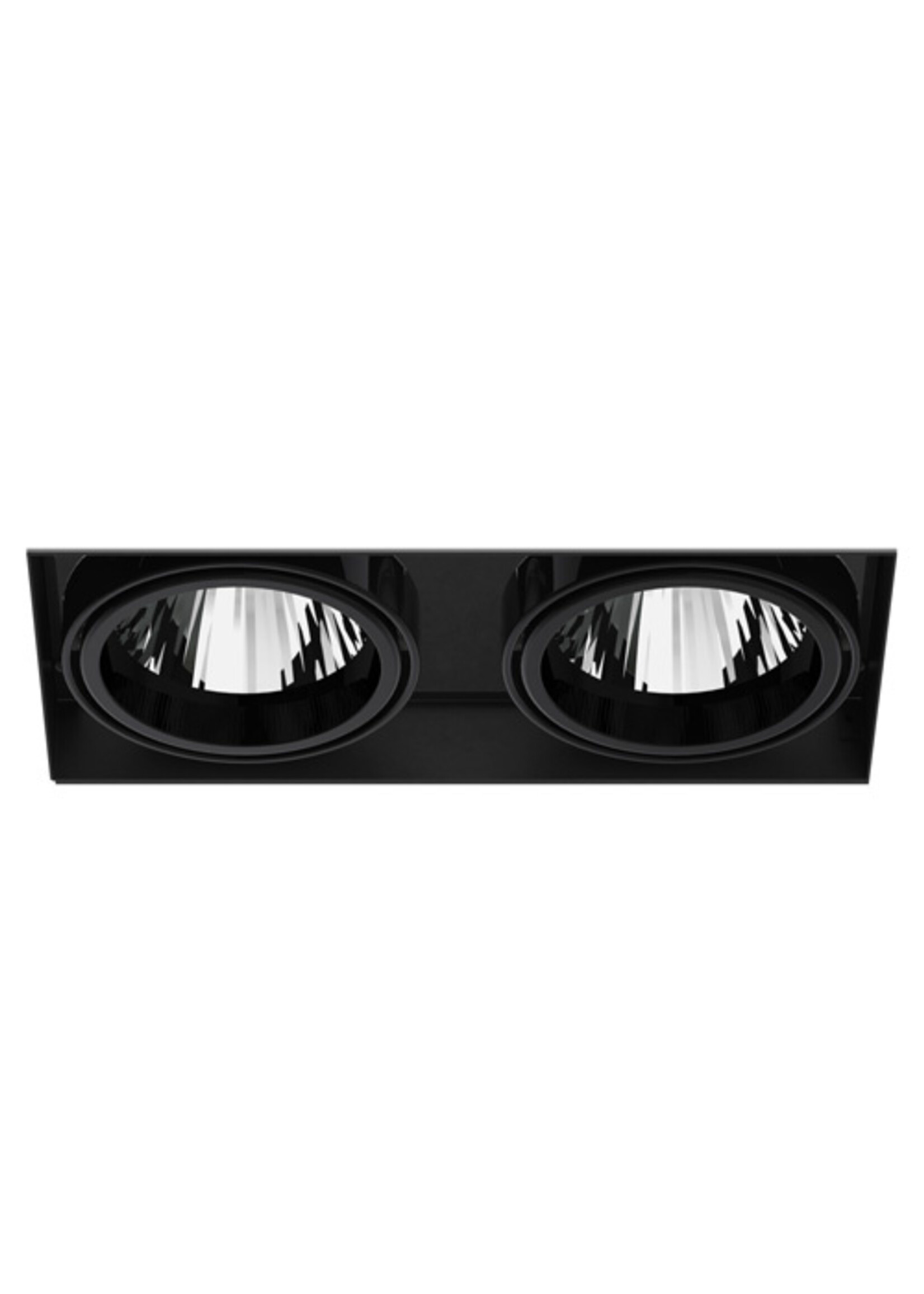

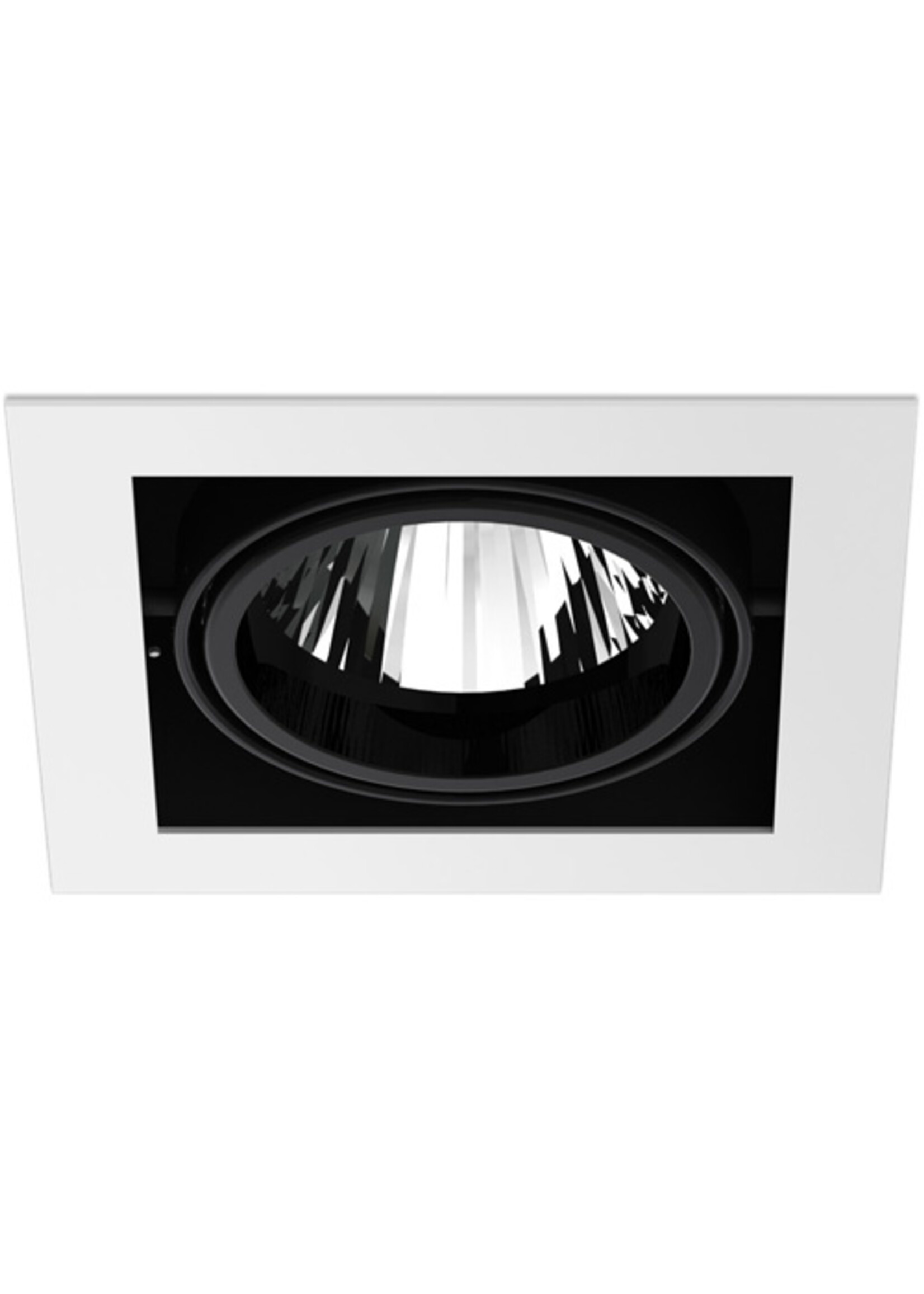

The recessed Matrix series fits all standard non-insulated ceiling types. Designed with the same dual axis system as the pendant mount, each lamp is hot adjustable, able to be aimed exactly where desired, eliminating the need for trial and error.



The Matrix family of recessed multiples throws powerful illumination to direct occupant focus. To aid in setting the scene, each lamp head rests in a free-floating cradle, tilting and rotating smoothly on a dual-axis system. Each Matrix arrangement fully creates highly effective lighting in demanding applications. The high-color rendering options reveal finishes and furnishing to greatest advantage. The lighting module produces a light consistency of less than 3 SDCM (MacAdam Ellipse).

Features and Benefits

• Utilizes Bridgelux BRO LED
• Lumen output: 2000–3100
• Dual axis adjustability system
• 360° rotation
• 25° aiming
• Designed for 5/8" drywall application
• Designed for non insulated ceiling types
• An unique clamping mechanism securely fastens the luminaire into place.
• Accepts up to 2 media
• Not suitable for installation in plenums that exceed 45° (113°F)
• L70 @ 50,000 hours
• Trimless version available (see separate specifications)
