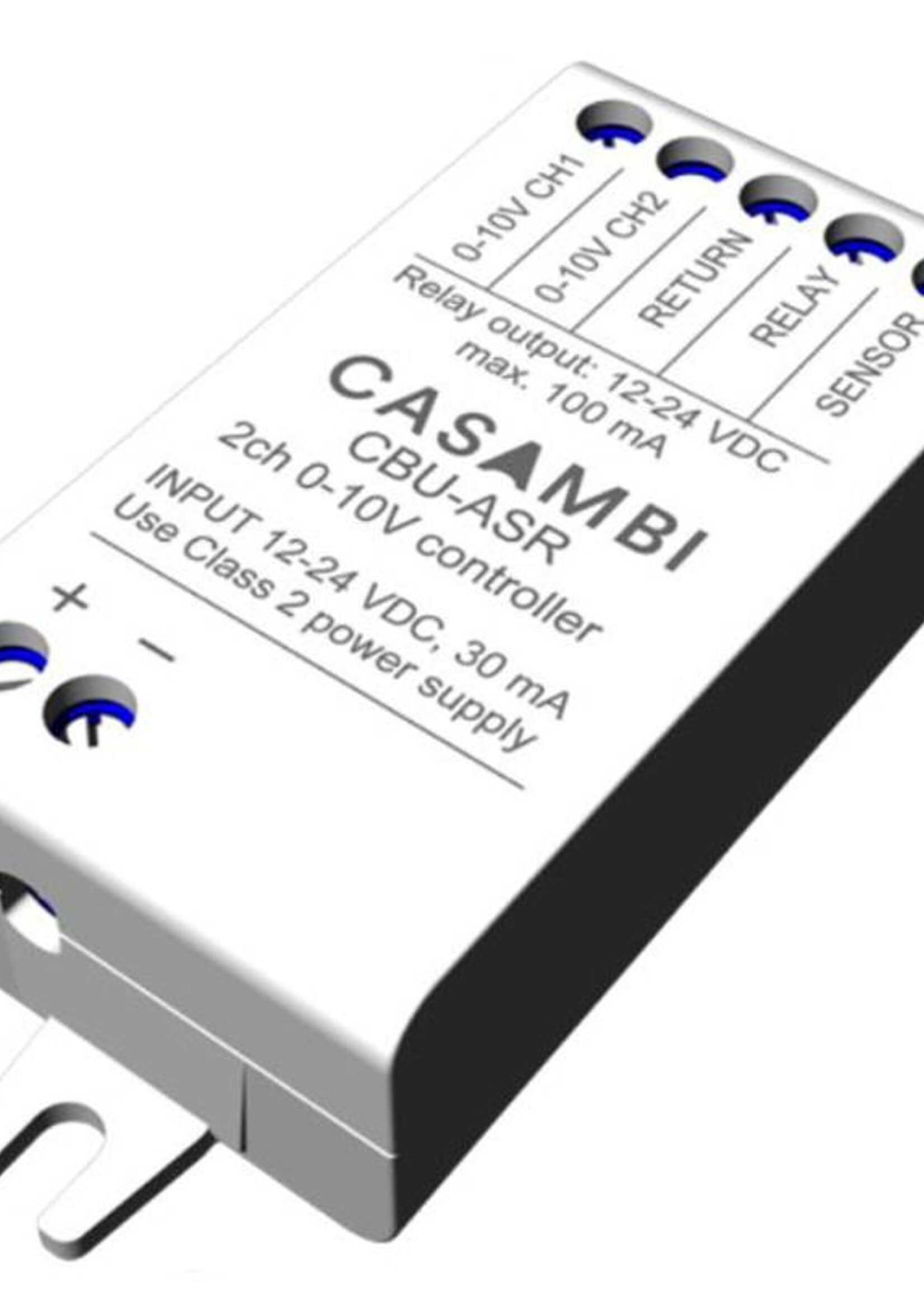

CBU-ASR is a multi-purpose wireless control unit. It has two 0-10 VDC outputs. For tunable white applications, it is an ideal match for one or two channel dim-to-off drivers that provide auxiliary power. It can also be used with industry standard power packs to turn on and off large electrical loads.
The CBU-ASR can be configured to control 2 single channel drivers or 1 multi-channel drivers. Both 0-10 VDC channels can be configured to control 2 channels of brightness or one channel can control brightness and one channel can control control temperature.
The CBU-ASR also has a sensor input which works with all standard low voltage occupancy sensors. The sensor input can also be configured to accept a signal from a light sensor.
Input Voltage range
12-24 VDC, 30 mA
2 channels of 0-10 V
Output0-10 VDC
1 Sensor input
Occupancy sensors signal 12 or 24
VDC
1 relay output
Switches input voltage (12 to 24 VDC, max 100 mA)
Dimensions
IP20
Protection
IP20
