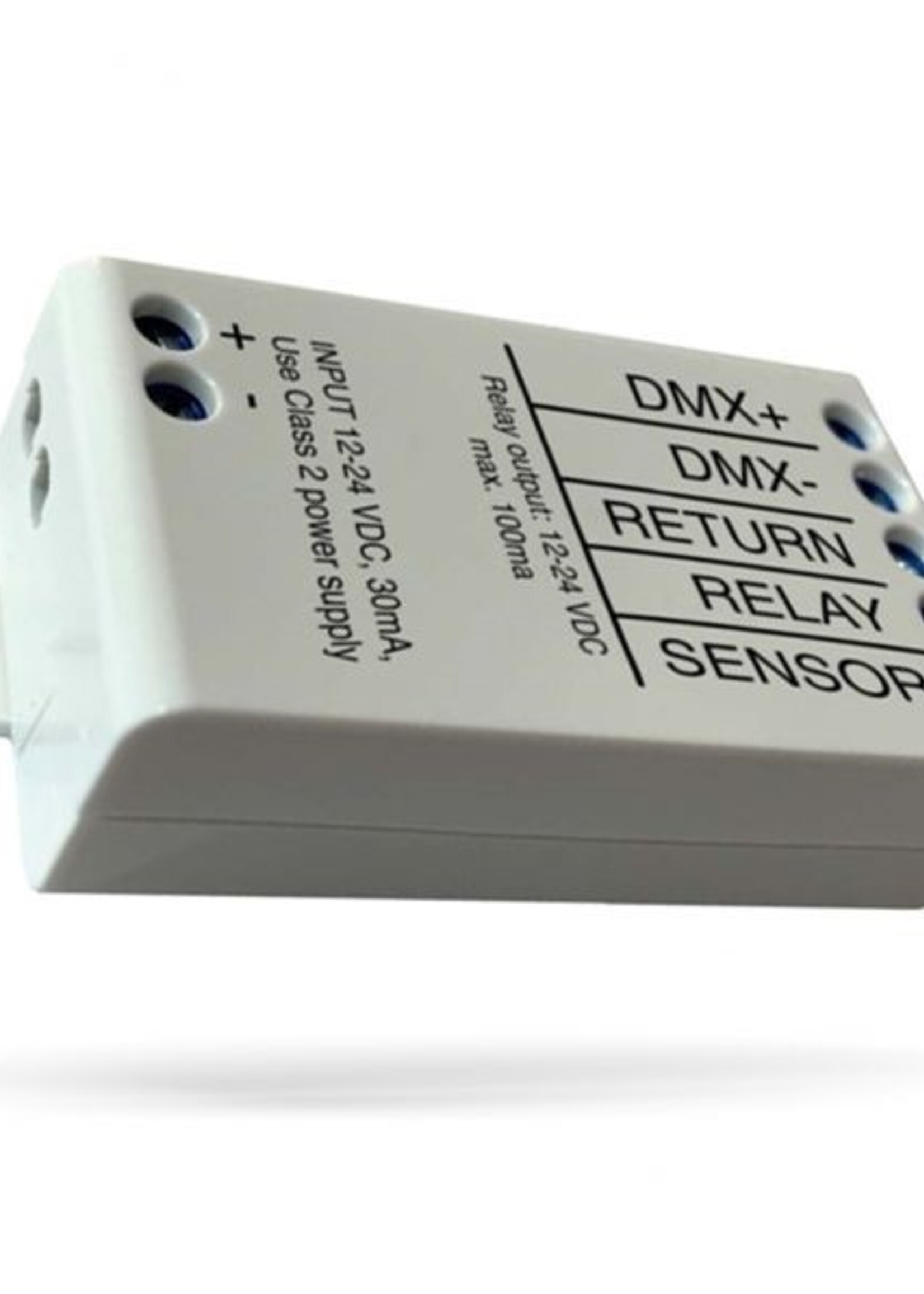

SPEC SHEET

• Input Voltage Range - 12-24 VDC
• No-Load Input Current - 30 mA
• Controls up to 28 DMX Channels (Slots)
• Max Power - 1W
• Aux-Relay Control Output - 12-24 VDC, same as input
• Max Output Current - 100mA
• Aux-Sensor Input Voltage - Max 24 VDC
• Ambient Temperature, ta - -13 to 113°F(-25 to 45°C)
• Max Relative Humidity - 0 to 80%, non-cond.
• Wire Range, Solid & Standard - 0.5-1.5 mm, 14-22 AWG
• Wire Strip Length - .25” (6-7 mm)
• Dimensions - 2.2” x 1.2” x 0.7” (72.6 x 30.0 x 18.0 mm)
• Weight: 0.8 oz (23 g)
